Individual parts can be replaced as needed. Lafferty also offers parts to modify the wand and nozzle assembly to help achieve the desired coverage.
The frequency of replacement depends on how diligently best practices are observed and the amount of use/abuse received. Consider water or compressed air driven equipment to eliminate pumping and the associated maintenance hassles.

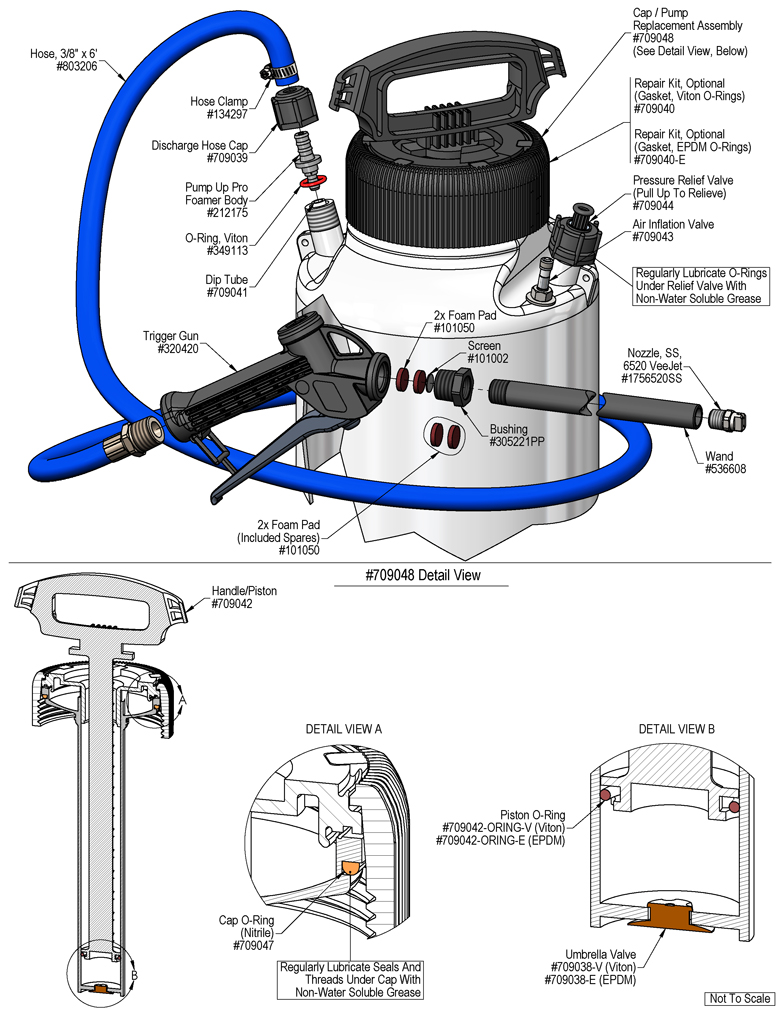

| Part Number | Description |
|---|---|
| 709048 | Cap/Pump Replacement Assembly |
| 709042 | Handle/Piston (O-Ring Not Included) |
| 709044 | Pressure Relief Valve |
| Part Number | Description |
|---|---|
| 709040 | Pump Up Repair Kit, Viton –Includes Silicone Grease– |
| 709040-E | Pump Up Repair Kit, EPDM –Includes Silicone Grease– |

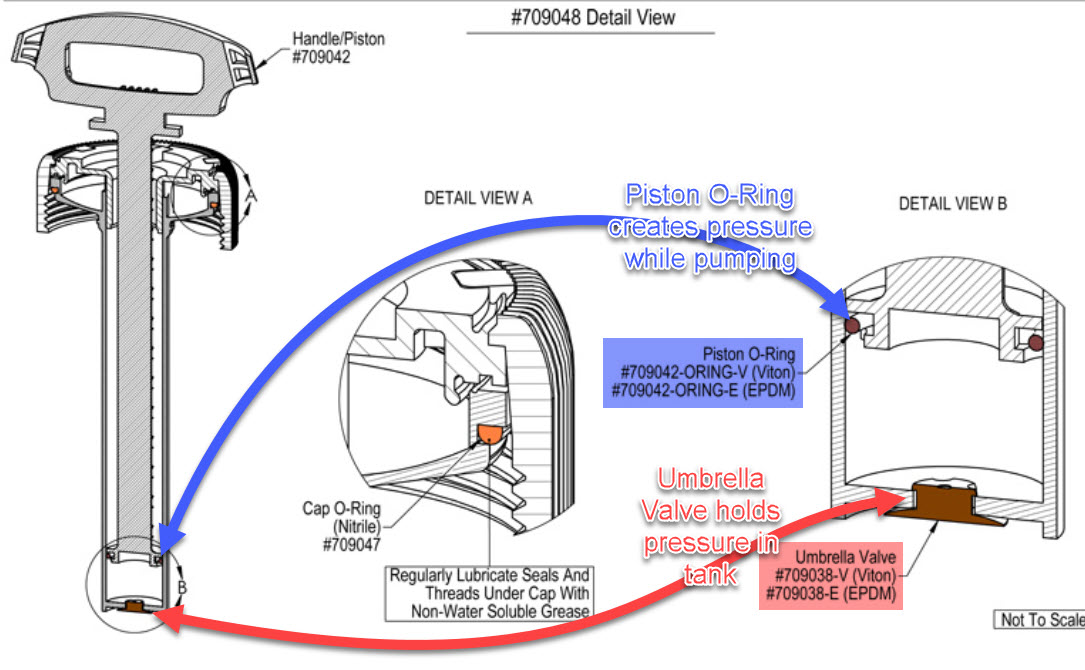

| 709042-ORING-V | O-ring, Handle/Piston, Viton |
| 709042-ORING-E | O-ring, Handle/Piston, EPDM |
| 709038-V | Pump Up, Umbrella Valve, Viton |
| 709038-E | Pump Up, Umbrella Valve, EPDM |
| 709049 | Silicone Grease, 5gm Tube –Included with Repair Kits– |
| Part Number | Description |
|---|---|
| 320420 | Gun, Trigger, 1/2″, Viton |
| 320420-E | Gun, Trigger, 1/2″, EPDM |
| 101002 | Foam Pad Screen, Hastelloy |
| 101050 | Foam Pad |
| 536608 | 10″ Wand (Standard) |
| 536609 | 27″ Extended Wand (Optional) |
| 536609-36 | 36″ Extended Wand (Optional) |
| 257604PP | 45° Angle Nozzle Adapter (Optional) |
| 257379 | 90° Angle Nozzle Adapter (Optional) |
| 1756520SS | Nozzle, SS, 1/4″ – 6520 (Standard Fan) |
| 180030 | Nozzle, SS, 1/4″ – 0030 (Zero Degree) |
| Part Number | Description |
|---|---|
| 709063 | Suction/Discharge Assembly, Viton |
| 709063-E | Suction/Discharge Assembly, EPDM |
| 709041 | Dip Tube, 3-Gallon Cut to length for 1.5-gallon tanks |
| 803206 | Hose, Blue, 3/8″ ID x 6′ |
Chemical Compatibility Note:
Viton/Nitrile o-rings and seals are used in our standard configurations and replacement parts. These seals are suitable for a wide range of general purpose cleaning products.
Alternately, Pump Up Foamers and some individual parts are available with EPDM seals pre-installed. These parts numbers typically include -E and the end of the part number.
PRO TIP: It is typically more cost-effective to purchase a standard part along with an EPDM repair kit to utilize when the standard seals need to be replaced due to chemical exposure and normal use. (There are no user-serviceable seals in the trigger gun.) O-Ring Replacement Guide.
